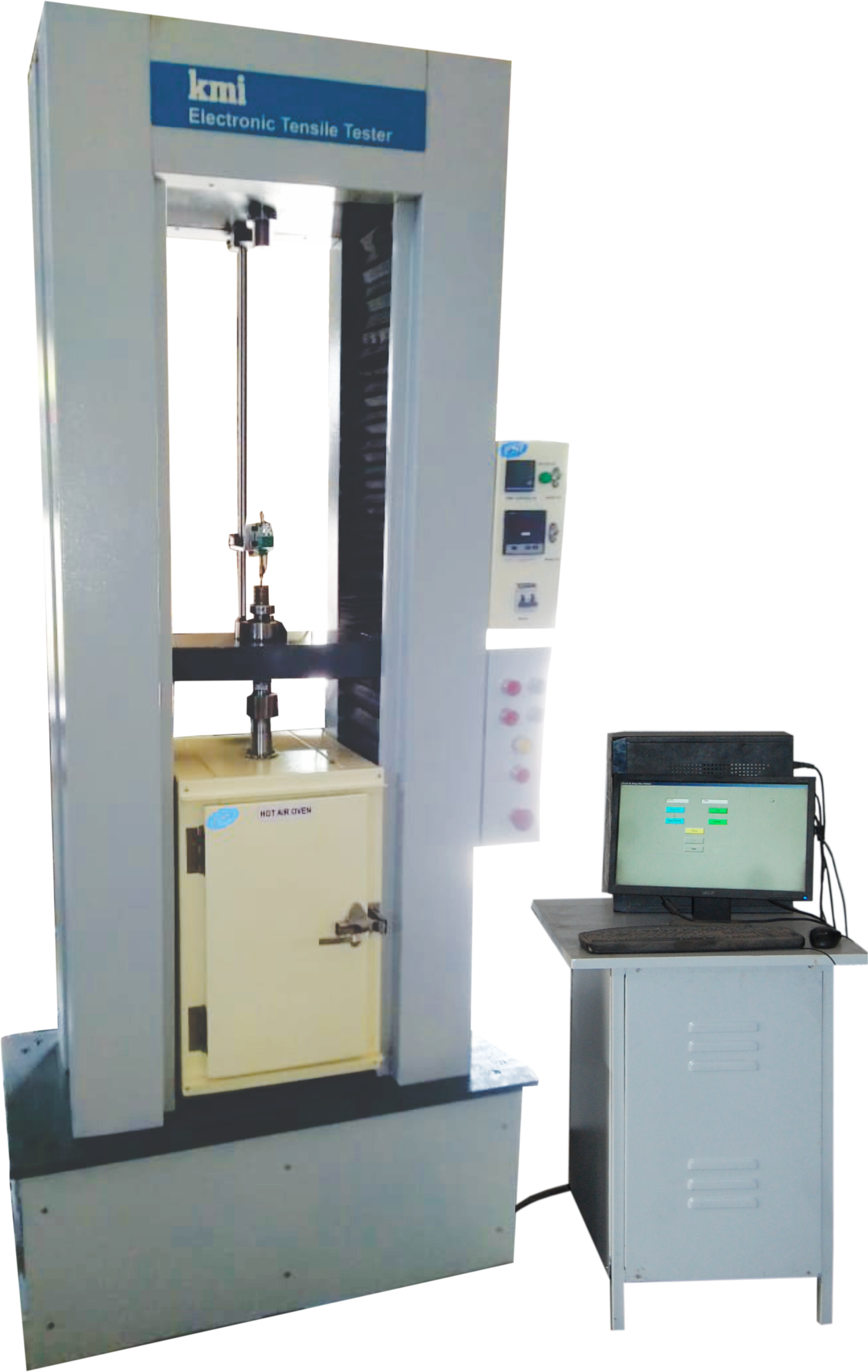

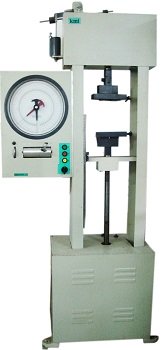

Universal Test Equipment
We are the manufacturers and suppliers of Universal Test Equipment.
PRODUCT DETAILS
| Accuracy | + 1% of the verification load OR + 0.2% of rated capacity of range employed |
| Material for Construction | MS,SS, Others |
| Brand | KMI |
| Computer Support | Available |
| Capacity | 50KN |
Features
- 1. Machine - Computer controlled equipment to test tensile strength and elongation of a wide range of materials. Compression, Bending,Flexural, Shearing Peeling, Tear & other tests are possible through special grips & fixtures.
- 2. Force Measurement - By Electronic Load Cells of high accuracy. Two Load-cells are included, One each for higher and lower strength material.
- 3. Elongation Measuring Device - Built-in Device.Measurement through cross - head movement by incremental encoder. For range & resolution,refer specification table.
- 4. Batch Test Facility - For a Batch test - can furnish statistical analysis report in regard to minimum, maximum, mean and C.V% of strength and elongation.
- 5. Cyclic Test Facility - Particularly Suitable For rubber belting .Automatic loading and unloading of specimen for desired number of cycles.( Maximum 999 cycles) Specimen can be stretched between given load or elongation limit - with 5% tolerance.
- 6. Proof Test Facility - Direct indication of proof load at selectable percentage of specimen gauge length.
- 7. Measuring Unit - Force Value Display in gm & kgf and print-out in selectable unit - gm, kg, N, cN, kN Or Lbs. Elongation. Display in mm and printout in mm or Inch.
- 8. Test Result - Display. During test all relevant test data including Load - Elongation Curve displayed on Computer screen. Print-out Test Report with Load - Elongation Curve can be had on completion of test.
- 9. Graph. - Load v/s Elongation & Stress V/S strain graphs. Auto scaling before print out. Special graph against specific need can be provided. For desired force value , corresponding elongation value & vice-versa can be directly seen on screen.
- 10. Cross-head Drive & Speeds - Variable test speed through variable frequency A.C.Drive.For speed range refer table. Speed selection through computer key board.Other speeds can be offered, On cost basis against specific requirement.
- 11.Testing Lower Strength Materials - For testing lower strength material additional load-cell can be provided on cost basis.
- 12. Protections - Overload & Over travel protection. Automatic stopping on specimen ruptures.
- 13. Accuracy - Complying IS 1828 ( part 1) : 1991 /ISO 7500 – 1 : 1986
