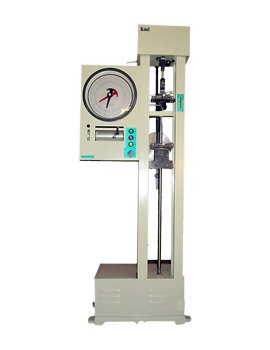

Model 1.3 D
PRODUCT DETAILS
| Max. Capacity | 200 N | 500 N | 1000 N | 2500 N |
| Scales & Least count | 0-50 N X 0.1 N, 0-100 N X 0.2 N, 0-200 N X 0.5 N |
0-100 N X 0.2 N, 0-250 N X 0.5 N, 0-500 N X 1 N |
0-200 N X 0.5 N, 0-500 N X 1 N, 0-1000 N X 2 N |
0-500 N X 1 N, 0-1000 N X 2 N, 0-2500 N X 5 N |
| Test Range | 5 N to 200 N |
10 N to 500 N |
20 N to 1000 N |
50 N to 2500 N |
| Elongation* scale Least count | 1 mm | 1 mm | 1 mm | 1 mm |
| Traverse speeds | 50, 100, 150,200, 225, 250,300, 400, 450 & 500 mm/min. | 50, 100, 150,200, 225, 250,300, 400, 450 & 500 mm/min. | 50, 100, 150,200, 225, 250,300, 400, 450 & 500 mm/min. | 50, 100, 150,200, 225, 250,300, 400, 450 & 500 mm/min. |
| Grip separation : Minimum - Maximum | 25 mm - 1000 mm | 25 mm - 1000 mm | 25 mm - 1000 mm | 25 mm - 1000 mm |
| Power requirement | 3 ph 440V 50 c/s AC | 3 ph 440V 50 c/s AC | 3 ph 440V 50 c/s AC | 3 ph 440V 50 c/s AC |
| Over-travel safety | included | included | included | included |
| Load elongation recorder | included | included | included | included |
